스포츠조명 전문 스포츠투광기 전문기업 (주)진우엘텍

LED sports flood light

This is a LED sports floodlight directly produced by Jinwoo Eltec.

LED Floodlight

EXVISTA PRODUCT
EXVISTA PRODUCT

EXVISTA PRODUCT

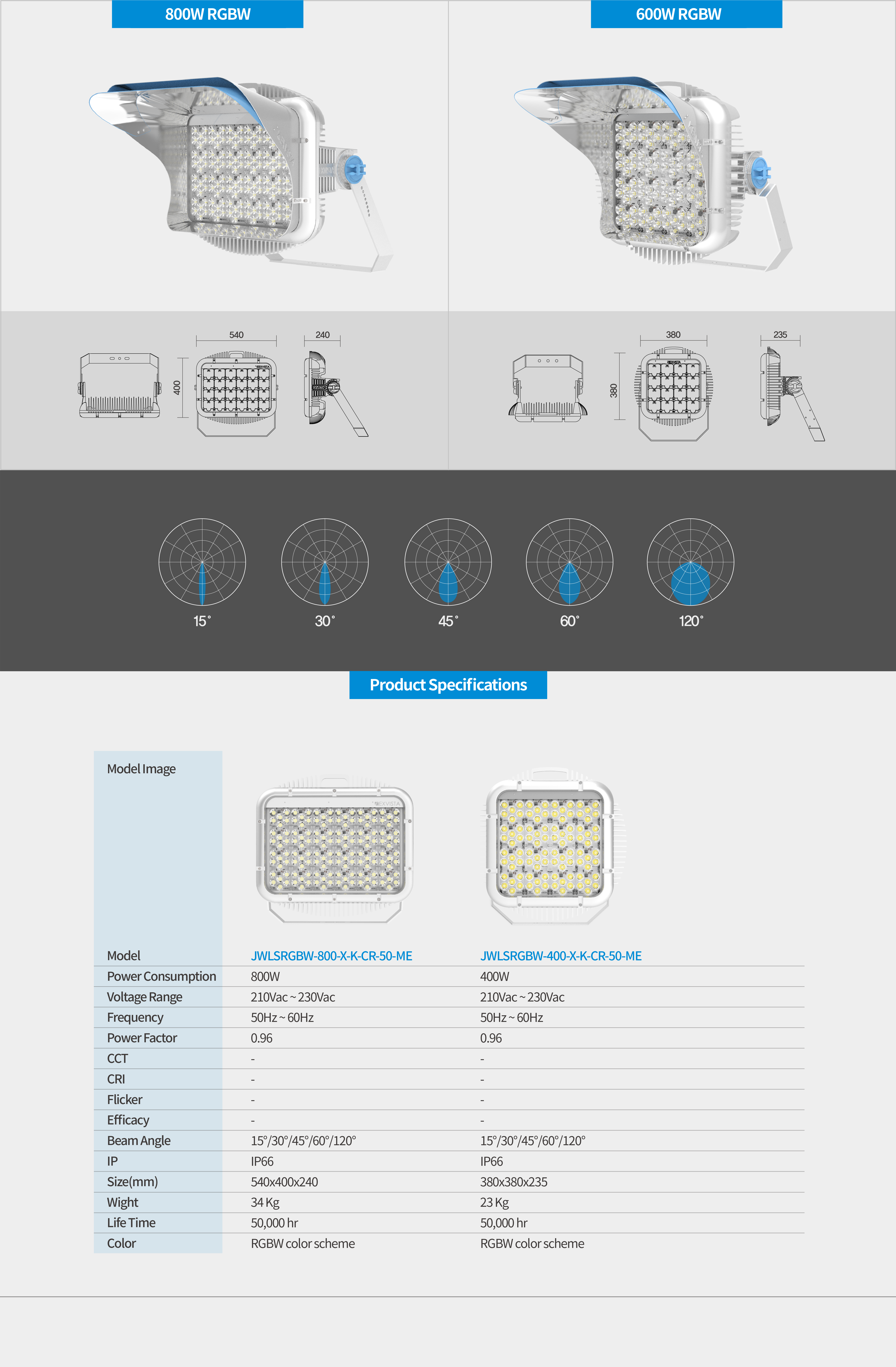

RGBW 800W/400W

  • EXVISTA PRODUCT
  • Ip66 Water/Dust proof design
  • Jinwoo designed heat-resistant light-diffusing polycarbonate lens
  • Aluminum die-casting
  • Optimal heat sink design with thermodynamic simulation work
  • Jinwoo’s unique design
  • Heat-dissipation glass
  • Light beam aiming adjustment gear includes (against high wind pressure)
  • Built-in constant voltage/Current protection circuit
  • Anti-glare device (when equipped with visor)

Product Explanation




진우엘텍 스포츠조명 LED 투광등기구 RGBW


Aluminum Die-casting

  • LED chip LM-80 test results
  • Fast, natural heat dissipation without the need for a separate fan

    *Products that use a fan often have frequent breakdowns and A/S, and cause shortening of product lifespan.

  • All-in-one aluminum product with light weight.
  • Multi-structure heat sink design through optimal thermal analysis simulation
  • The heat generated by the LED is quickly released.
  • Heat dissipation performance certification by testing and certification of international standards.

Visor not Installed

  • Light pollution and glare may occur with a wide
    range of leakage light
  • Reduced game efficiency at night and possible complaints due to glare and light pollution

Visor Installed

  • Accurately irradiate the designated area when installing the visor.
  • It maintains excellent light efficiency with high reflectance, Providing an optimal environment by blocking leakage light.

Factory Pre-Aiming

It is possible to finely adjust the horizontal/vertical angle with a fine adjustment device that adjusts the angle of EXVISTA lighting in units of 1 degree. If the angle of adjustment of the lighting is off, the designed uniformity and evenness do not match, so A/S occurs. Our control device blocks these problems in advance and provides an even lighting environment at all times.

Vertical Angle Adjustment

Horizontal Angle Adjustment

Converter Installed

Using the self-made aluminum extruded SMPS converter case, the product's lifespan is reliably guaranteed with IP 65 rating, perfect waterproof and dustproof and excellent heat dissipation.
