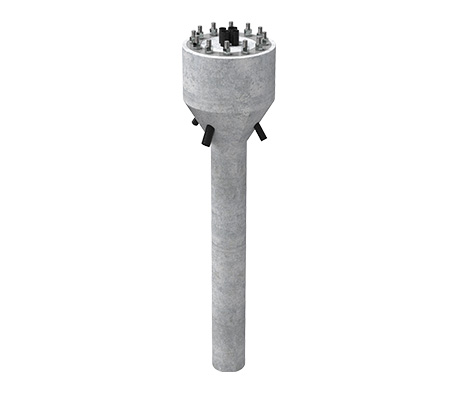

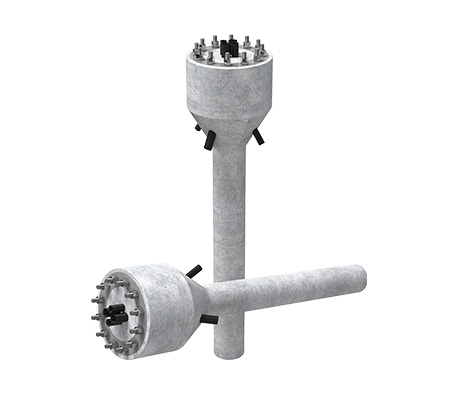

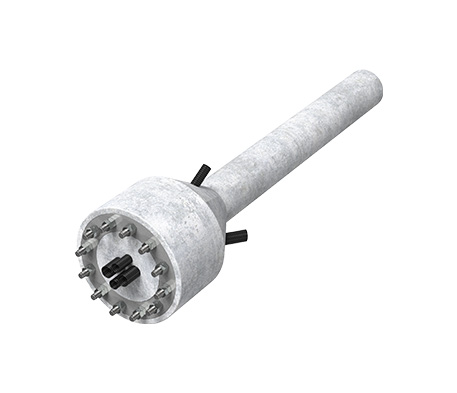

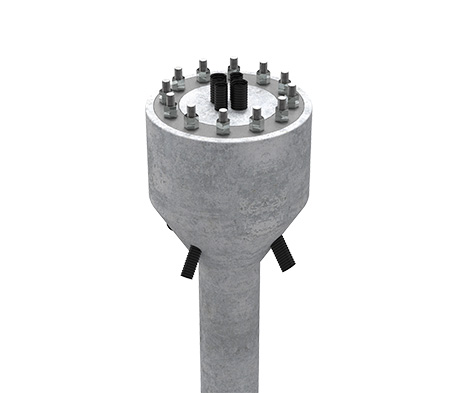

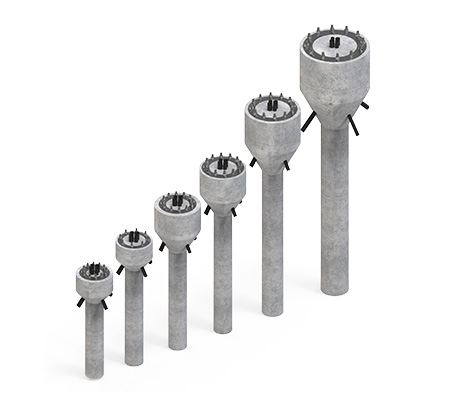

Pier Base

It is a concrete foundation directly produced by Jinwoo Eltec, which is the foundation of the lighting tower.

Pier Base

피어기초
피어기초
피어기초
피어기초
피어기초
피어기초
피어기초
피어기초
피어기초
피어기초

EXVISTA BASE

Pier Base

  • Foundation anchor and lighting tower fastening method
  • Can be used for a long time without damage to the painting and plating of the tower
  • Keep the light tower poles dry
  • Easy to install, portable and reusable
  • Can be installed within 1.5m working radius
  • Shorten the construction period
  • Equipped with grounding copper plate (3 types of grounding)

Product Explanation

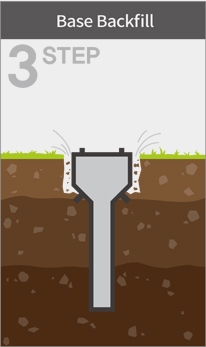

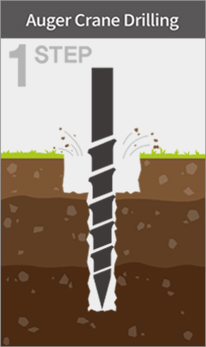

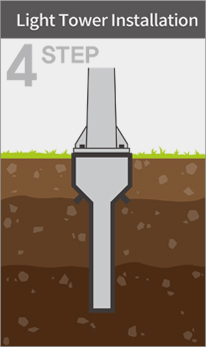

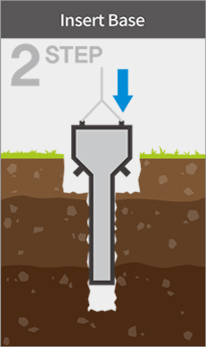

Pier Base 4step Construction Process

Pier Base 12m

Item Number
Product Name
Ground Surface Roughness
Applicable Tower
22994983
JWB12-M24/2708-400/450
C
12m 6 Light
22994984
JWB12-M2708-450
C
12m 6Light
22994985
JWB12-M36/4208-450
C
12m 12Light
22994986
JWB12-M3012-450/500
C
12m 12Light
22994987
JWB12-M2412-450/500
D
12m 6Light
22994988
JWB12-M4808-500
D
12m 6Light

Pier Base 15m

Item Number
Product Name
Ground Surface Roughness
Applicable Tower
22994989
JWB15-M3008-450/500
C
15m 6Light
22994990
JWB15-M3012-450/500
D
15m 6Light
22994991
WB15-M30/3608-480/490
C
15m 6Light
22994992
JWB15-M42/3612-500/550
C
15m 12Light
22994993
JWB15-M4212-550/580
D
15m 12Light
22994994
JWB15-M36/4208-600
D
15m 12Light
22994995
JWB15-M4808-650
D
15m 12Light

Pier Base 18m

Item Number
Product Name
Ground Surface Roughness
Applicable Tower
22994996
JWB18-M36/4208-480/490
C
18m 6Light
22994997
JWB18-M3012-500/550
C
18m 6Light
22994998
JWB18-M4212/550-580
C
18m 12Light
22994999
JWB18-M30/3612-600
C
18m 12Light

Pier Base 20m

Item Number
Product Name
Ground Surface Roughness
Applicable Tower
22995000
JWB20-M30/3612-600
C
20m 10Light
22995001
JWB20-M4212-650
D
20m 10Light
22995002
JWB20-M4212-650/680
C
20m 18Light
22995003
JWB20-M3612-650/680
C
20m 10Light
22995004
JWB20-M3612-750
C
220m 18Light
22995005
JWB20-M4812-750
D
20m 18Light

Pier Base 24m

Item Number
Product Name
Ground Surface Roughness
Applicable Tower
22995006
JWB24-M4212-750/780
C
24m 18Light
22995007
JWB24-M36/4212-750/780
C/D
24m 10Light

Pier Base 25m

Item Number
Product Name
Ground Surface Roughness
Applicable Tower
22995008
JWB25-M3612-750
C
25m 10Light
22995009
JWB25-M36/4212-900
C
25m 18Light
22995010
JWB25-M4812-900
D
25m 18Light
