Fog Light

Fog lights used at night and on foggy golf courses

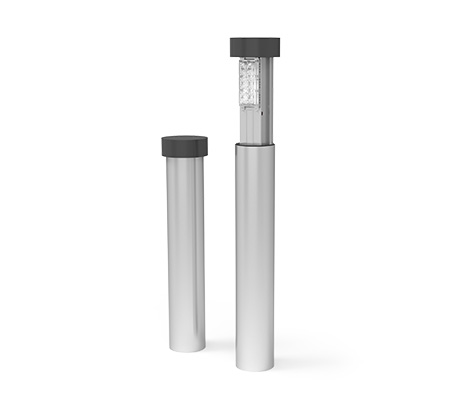

Up&Down Fog Light

승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등
승하강식 안개등

EXVISTA FOG LIGHT

Up&Down Fog Light

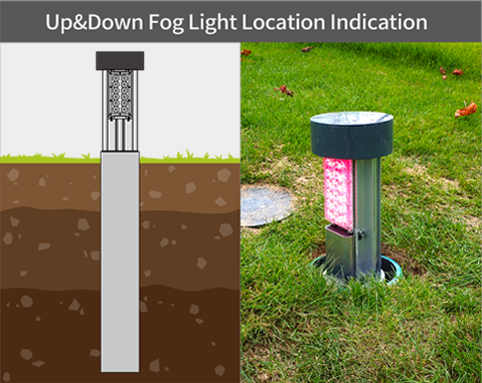

  •  Convenience of use due to landfill elevating method
  •  Can be controlled with a power line without a separate control line construction
  •  No restrictions on usage time with constant power
  •  Easy maintenance as the device can be detached

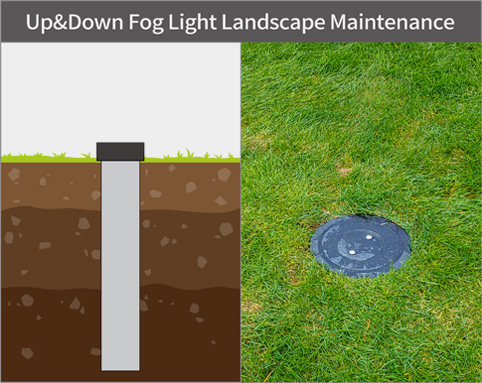

  •  Maintaining natural scenery without external exposure
  •  Excellent visibility

Product Explanation

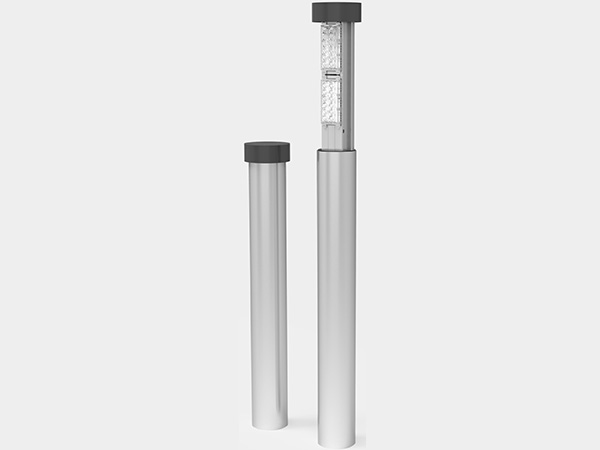

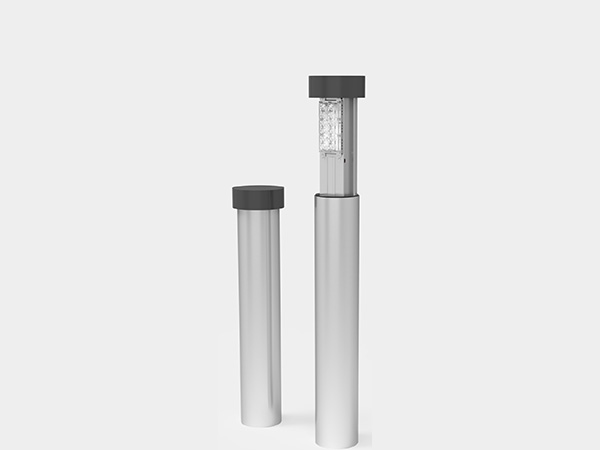

Up&Down Fog Light 25W

Up&Down Fog Light50W

Product Specification

Product Name
EV-50NF JWFOGLED-50-X-K-SE-35-OS EV-25NF JWFOGLED-25-X-K-SE-35-OS
LED Electric Feature
Manufacturer Seoul Semiconductor Input Voltage AC 198~242V
Model Name SZDR5A0B Output Voltage 24V
Vf Rank C(1.75~2.10), D(2.10~2.50) Output Current 1A (TBD)
Quantity 12EA Power Consumption 24W (TBD)
Power Factor >0.9PF
Surge TBD
Optical Properties Physical Properties
Wavelengh 646(Min)/657(TP)/667(Max) Material SUS, AL
Beam Angle 12° Size 670mm X 140 ø
Weight 9.5kg (Excluding control)
Stroke Speed(S) 10mm
Stroke Weight 600~700N (1kg = 9.8N)
Other Feature
SMPS OSRAM/MEANWELL
Battery SamsungINR18650-35E(6S1P)_KC
Life Span 50,000hr (Battery except)
Temperature -20~50°C
IP 66(Product lowerd)_TBD
Certification TBD
